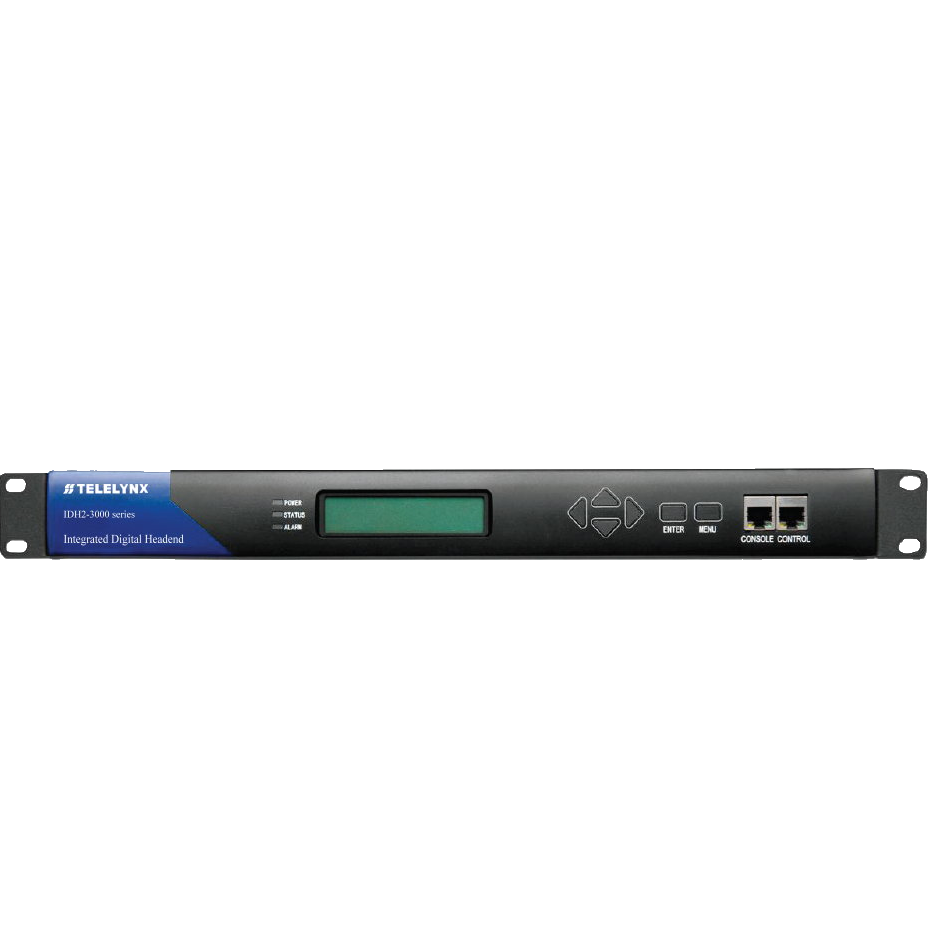

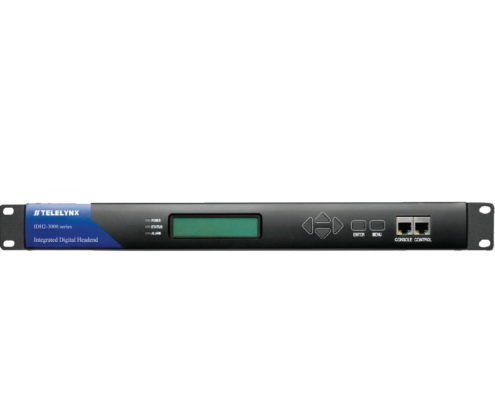

IDH2-3500
TSIP-ASI Processor
IDH2-3500 series is a multi-functional TSIP-ASI processor which performs the adaptation of interfaces between ASI and Gigabit Ethernet TSIP for the DVB headend, and also performs multiplexing and optional scrambling function to the MPEG transport streams before output. The IDH2-3500 series offers flexible licensing mechanism for scrambling functions, for connection up to four conditional access system(CAS).
Specifications & Features
- Supports various network interface conversion, TS pass-through, multiplexing and scrambling
- Multiple adapter options: ASI to IP, IP to ASI, both IP to ASI and ASI to IP
- Up to eight ASI inputs (or outputs)
- TS-over-UDP/RTP input or(and) output, supporting MPTS/SPTS
- Flexible configurations with module authorization management system
- Up to 24 multiplexing channels and multiplexing up to 512 programs
- Supports SD and HD programs
- Complies with DVB-CSA, scrambling up to 256 programs
- Supports various customizable PSI/SI table extraction and manual insertion
- PID filtering, pass-through, PCR auto-correction
- Real-time statistics and analysis of program bit rates
- Front panel control and LCD display
- Web and SNMP management for local and remote management and maintenances
