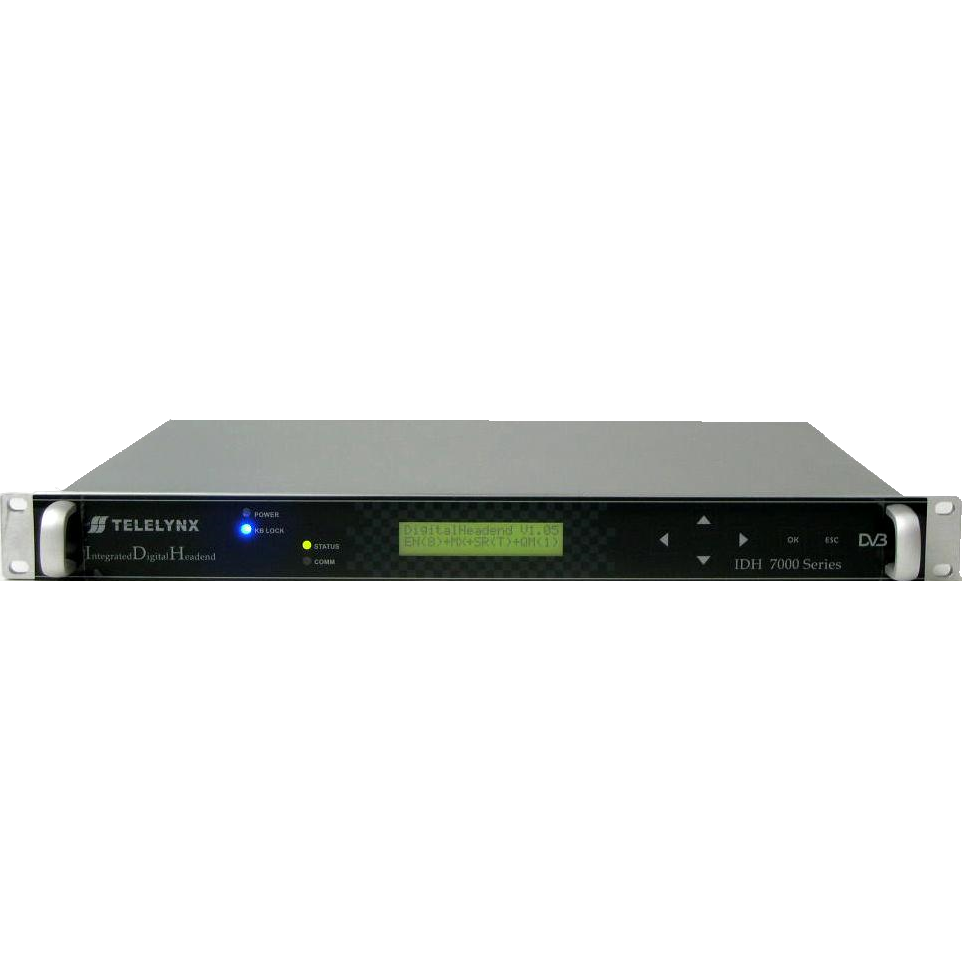

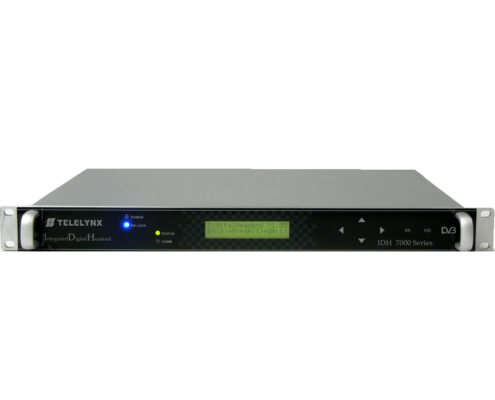

IDH2-80010
Multi-channel H.264 Low Bit- rate SD Encodersr
Telelynx is proud to introduce a reliable, low bit-rate and high-performance multiple-channel H.264 / MPEG-2 standard definition (SD) encoder integrated with a re-multiplexer. This product line includes four, six, eight and ten channels of H.264 / MPEG-2 SD encoders to be multiplexed to an MPTS ASI output and an optional IP output.
Specifications & Features
- Number of encoders: 4, 6, 8, or 10 of H.264 / MPEG-2.
- Number of multiplexer: 1 (default).
- Size: 1 rack unit.
- Dual power supplies: 1 main, 1 backup with auto backup.
- Front panel control: System parameter setting and alarm message
2 x 20 display, 4 LED, 6-key buttons. - Rear panel: up to 10 analog CVBS and audio inputs,
2 ASI outputs (1 main, 1 backup),
2 RJ-45 ports (1 for network manager, 1 for TS over IP output), both at 100 Base-T - Network management: with management software for setting, configuration, and
management of each element of the integrated headend through Ethernet. - Support IP output (UDP/ RTP protocol).
- Support IP unicast and multicast.
