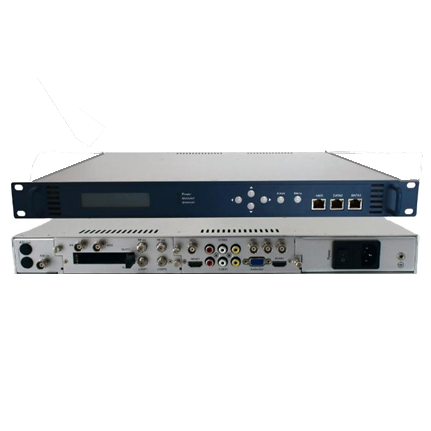

LaVision 1545UD
H.265 4K Professional IP IRD
LaVision 1545UD is a comprehensive modular and professional TS processor / decoder equipped with 2 independent modules, one is RF module, and the other one is HDMI/SDI Decoding module. Therefore, it can support a wide range of applications by combining 2 tuners (DVB-S/S2, DVB-T/T2, DVB-C) processing capability with ASI and TS/IP outputs. This advanced 4K IRD is equipped with up to 2 CI slots capable of working with most CAS in the market to de-crypt multiple pay- TV services. The unit also supports 10*MPTS/64*SPTS and 2 GbE ports (one for backup) of IP output.
Specifications & Features
- Superior real-time MPEG2, H.264, AVS+ and HEVC Decoding and output in UHD/4K, HD and SD
- Multiple input: IP/ASI, optional DVB-S2/T2/C CI RF inputs
- 2 independent CAM card sets, decrypting two different signals
- HEVC Video out: Up to 4*HDMI in 4k@30fps /4*3G-SDI, HD-SDI in 1080P/1080i(SDI)@60fps and 4*CVBS
- Audio out: Up to 4*Analog R/L, 4*XLR and 4*AES/EBU
- Up to 2 CI slots, Biss 1 / Biss E decryption
- Support VBR and CBR Bitrate Mode
- HEVC/H.265 main and main-10 profiles (4:2:0)
- Teletext and DVB subtitle supported
- Low Latency decoding
- Ultra low latency video processing
- Image enhancement, de-noising, sharpening, de-interlace, anti-sawtooth
- flicker
- Audio decoding: AC3 / E-AC3 / AAC / MPEG1 L2
- Front-panel and web-based user interfaces
