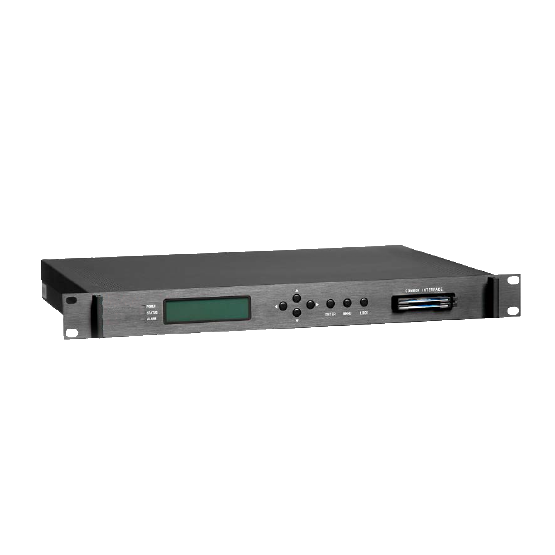

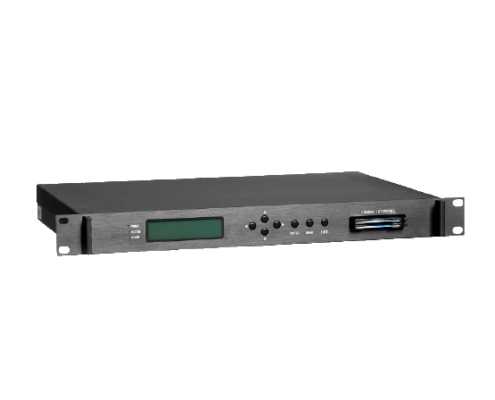

LaVision 860HD-IP
MPEG-4 AVC HD Professional IP IRD
Telelynx introduces an advanced, flexible and high-performance professional integrated receiver decoder (IRD), Model LaVision 860HD-IP, compliant with H.264 (MPEG-4 AVC) for HD / SD IP headend applications.
Specifications & Features
- DVB-S/S2 (or DVB-C, DTMB) RF demodulation, TS descrambling
- Universal MPEG-2, MPEG-4 AVC SD/HD/FHD, AVS and AVS+ video decoding
- MPEG-1 Layer 2, DRA2.0 audio decoding, optional AAC decoding
- Dual DVB-CI slots, supporting up to 16 descrambling of TV programs
- Up to 72Mbps of descrambling bit rate each CAM slot
- Standard common interface complied with EN 50221, supporting most major CA systems
- Supports various decoding outputs: composite video, unbalanced audio, HDMI and 3G-SDI
- Outputs resolutions: 480i (NTSC), 576i (PAL), 1080I, 720P, 1080P
- MPEG TS-over-UDP/RTP inputs and outputs, supporting SPTS and MPTS
- Dual ASI inputs and outputs
- Supports Web and SNMP-based management
