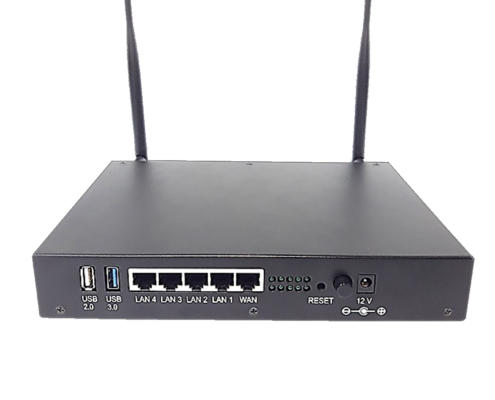

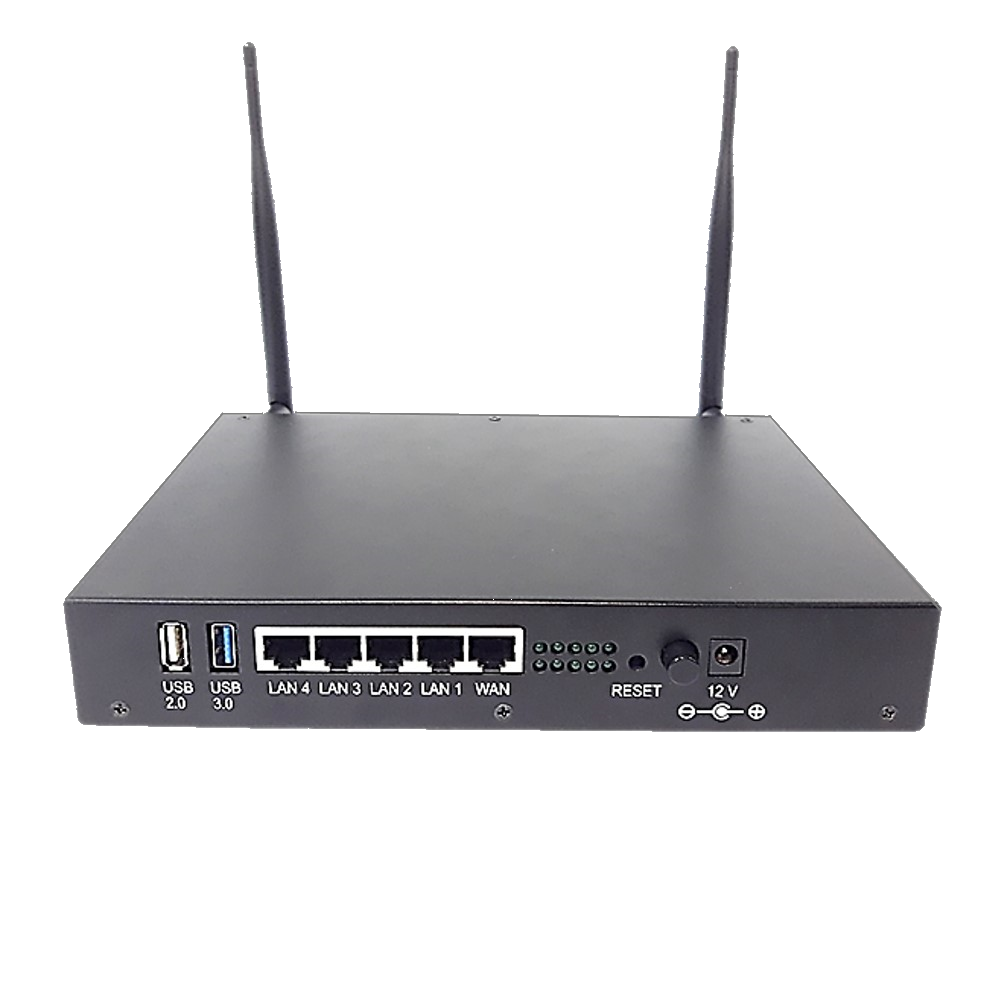

TBS-300
Hot Spot VOD / Mini OTT
The TBS-300 Hot Spot VOD/ Mini OTT system is a new innovation based on Wi-Fi, which enables passengers / consumers/ students to use their own smart phones or tablets to watch VOD movies, listen to music, surf Internet (option), or access to news/information. Simply put, it is a VOD without the need of Internet. This state-of-the-art, wireless-based system consists of a mini server with Wi-Fi and optional 3G/4G router, system management software, and Wi-Fi-based end- user devices.
Specifications & Features
- Wi-Fi Hotspot
It’s a high-performance Wi-Fi hotspot and can support up to over 50 users to connect to the Internet simultaneously (optional, 3G/4G router required). - Big storage device
It has two SATA interfaces to allow install hard disks and store lots of digital content, including audio, video, text and etc.. - Live streaming server
It can convert the live streams of the Internet or the stored videos to standard HLS live streams and then push them to the connected mobile users via apps or web pages without delay. - Advertising station
This device can serve as an advertising station, where perators can make profit by injecting advertising into the video streams.
Hardware Specification
| CPU | MIPS 880 MHz x 2 |
| Storage | Rear panel 2-bay 2.5 inch SATA slot for SSD or HDD storage |
| Ethernet | WAN: 10/100/1000Mbps x 1, LAN: 10/100/1000Mbps x 4 |
| Wi-Fi AP | 2.4GHz Antenna x 2 |
| 3G/4G (option) | Can be connected to external 3G/4G router |
| RAM | 512MBytes |
| Power Input | 12 VDC/3A input, Power consumption: 36W |
| Weight/Dimension | Dimension: 237x165x40 mm. Weight: 1.2 Kg (without HDD) |
| Regulation | CE/FCC |
Software capacity
| Operating system | Embedded Linux |
| Max channels | 30 Channels (480p, 500Kbps) |
| Max concurrent users | 30 users (480p, 500Kbps) |
| Output format | HLS/M3U8 streaming |
